About this item

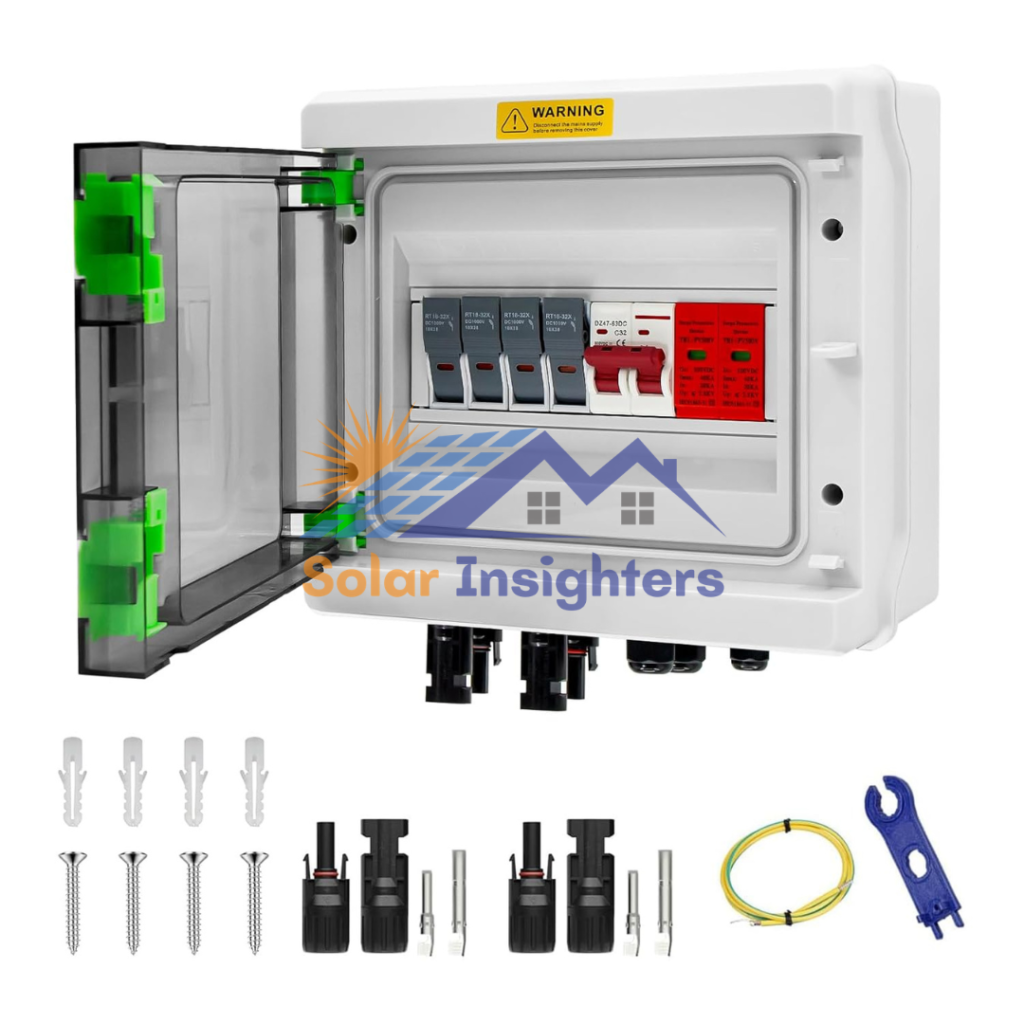

Solar Combiner Box with Surge Protector
A Solar Combiner Box with Surge Protector plays a critical role in protecting your system from electrical damage caused by lightning and voltage fluctuations.
Whether you’re installing a home solar system or a commercial setup, this component ensures long-term reliability and system protection.
⚡ What is a Solar Combiner Box with Surge Protector?
A solar combiner box is a device that combines multiple solar panel strings into a single output and sends it to the inverter.
When integrated with a Surge Protective Device (SPD), it also protects the system from:
- Lightning surges
- Voltage spikes
- Electrical faults
The surge protector safely redirects excess voltage away from sensitive equipment like inverters and batteries.
🌟 Key Features
- 🔹 Multiple String Input Support – Combines several solar panel outputs
- 🔹 Built-in Surge Protection (SPD) – Protects against lightning and voltage spikes
- 🔹 DC Circuit Breakers & Fuses – Prevent overload and short circuits
- 🔹 Wide Voltage Range (600V–1500V DC) – Suitable for residential & commercial systems
- 🔹 IP65 Waterproof Enclosure – Safe for outdoor use
- 🔹 Easy Wiring Management – Organized and simplified connections
- 🔹 Grounding Protection System – Enhances safety
- 🔹 Pre-assembled Components – Reduces installation time
⚙️ How It Works
The combiner box collects DC power from multiple solar panel strings and sends it to the inverter.
At the same time, the surge protector acts like a safety valve:
- Detects sudden high voltage
- Diverts excess energy to ground
- Protects connected equipment
This helps prevent damage, fire risks, and system failure caused by electrical surges.
⚡ Importance of Surge Protection
Surge protection is not optional—it’s essential.
Without it, your solar system can face:
- Inverter damage (costly replacement)
- Panel and wiring failure
- Fire hazards
A combiner box with SPD protects the entire solar array at once, eliminating the need for separate protection on each string.
🏠 Ideal Use Cases
- Residential solar systems
- Commercial solar installations
- Off-grid solar setups
- Solar farms and large-scale systems
- Areas with frequent lightning or unstable power
📊 Pros & Cons
| 👍 Pros | 👎 Cons |
|---|---|
| ✔ Protects system from lightning and voltage surges | ❌ Higher cost than basic combiner box |
| ✔ Improves system safety and lifespan | ❌ Requires proper grounding for effectiveness |
| ✔ Combines multiple panel strings efficiently | ❌ Installation needs technical knowledge |
| ✔ Reduces wiring complexity | ❌ SPD may need replacement after major surge |
| ✔ Suitable for residential & commercial use | ❌ Slightly larger and heavier unit |
| ✔ All-in-one protection solution | ❌ Quality varies by brand |
🔧 Installation & Setup
For best performance:
- Install close to solar panels or inverter
- Ensure proper earthing/grounding system
- Use correct voltage-rated combiner box (600V/1000V/1500V)
- Check SPD status indicators regularly
- Professional installation is highly recommended
⚠️ Poor grounding can reduce surge protection effectiveness.
💡 Why Choose a Combiner Box with Surge Protector?
This device is essential if you want:
- Maximum protection for expensive solar equipment
- Reliable performance in harsh weather
- Simplified system wiring
- Long-term system durability
It acts as a central protection hub for your entire solar setup.
