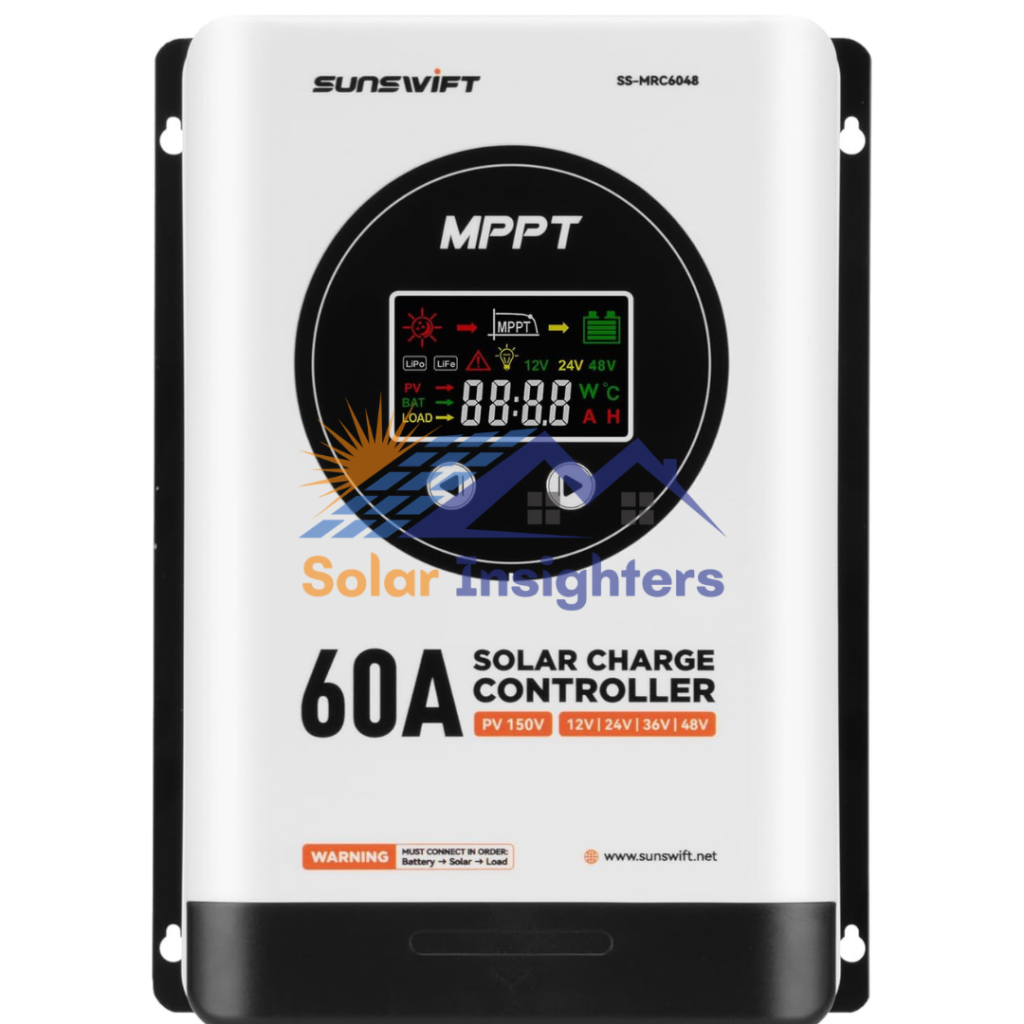

60A MPPT Solar Charge Controller with Large LCD Display
A 60A MPPT Solar Charge Controller with Large LCD Display is a powerful device used to manage and optimize solar energy flow from panels to batteries. With MPPT technology, it increases energy efficiency, while the large LCD screen provides real-time system data for easy monitoring.
This type of controller is ideal for medium to large solar systems, including homes, farms, and off-grid setups.
Key Features
⚡ High-Efficiency MPPT Technology
MPPT (Maximum Power Point Tracking) ensures:
- Up to 30% more energy efficiency than PWM controllers
- Optimal voltage and current adjustment for maximum output
🔋 60A Charging Capacity
- Supports up to 60 amps charging current
- Suitable for large battery banks
- Works with 12V / 24V / 48V systems (auto or manual setting)
📺 Large LCD Display
The built-in LCD shows:
- Battery voltage & charge level
- Solar panel input (voltage/current)
- Charging status
- Error/fault messages
👉 Makes monitoring and troubleshooting much easier.
🧠 Multi-Stage Intelligent Charging
Protects batteries using:
- Bulk charging
- Absorption stage
- Float stage
This helps extend battery lifespan and improve performance.
🔒 Advanced Safety Protection
Includes:
- Overcharge protection
- Over-discharge protection
- Short circuit protection
- Reverse polarity protection
- Overload & overheating protection
🌡 Temperature Compensation
Adjusts charging parameters automatically based on temperature — ensuring safe and efficient battery charging.
🔌 Wide Compatibility
Compatible with:
- Lead-acid batteries (AGM, Gel, Flooded)
- Lithium batteries (in some models)
Pros and Cons
| Pros | Cons |
|---|---|
| High efficiency (MPPT) | More expensive than PWM |
| Large LCD for easy monitoring | Setup can be complex |
| Supports larger systems (60A) | Needs proper wiring & configuration |
| Multiple battery compatibility | Some models lack app connectivity |
| Strong safety protections | Requires ventilation space |
Best Uses
✔ Home solar systems (medium to large)
✔ Off-grid houses & farms
✔ Commercial solar setups
✔ Backup power systems
✔ Solar inverter + battery systems
How It Works
MPPT technology maximizes solar power output by adjusting voltage and current:
P=V×IP = V \times I
👉 The controller continuously finds the best combination of voltage (V) and current (I) to produce maximum power (P).
Installation Tips
🔧 Connect in order:
- Battery → Controller
- Solar panel → Controller
📍 Install in a cool, ventilated place
⚠️ Use proper cable size for 60A current
📊 Set correct battery type before use
Why Choose a 60A Controller?
- Handles larger solar arrays
- Supports bigger battery banks
- Better for future system expansion
- Provides stable and efficient charging
