About this item

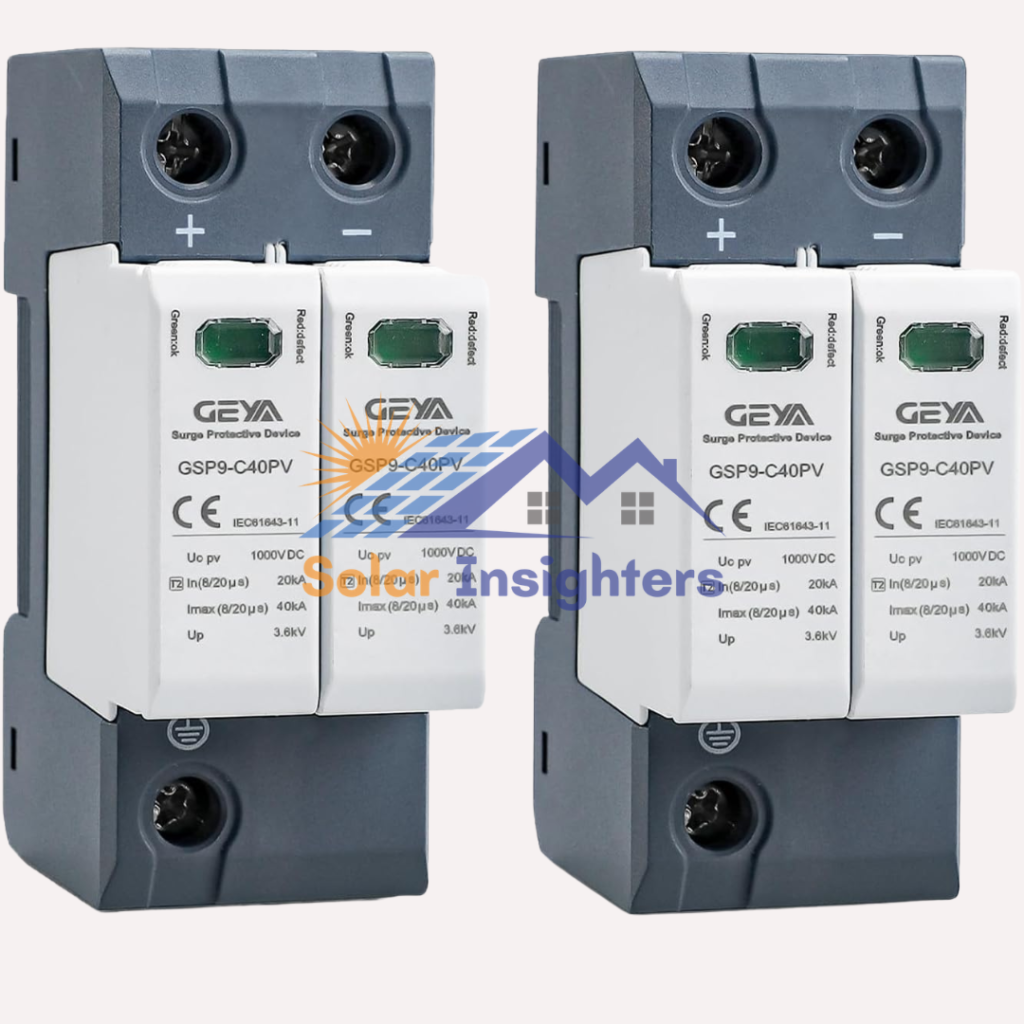

1 PCS 40 KA Voltage Surge Solar Protector
A 1 PCS 40 KA Voltage Surge Solar Protector is a surge protection device (SPD) designed to safeguard your solar photovoltaic (PV) system from dangerous voltage spikes caused by lightning strikes, grid switching, or transient surges. With a high 40 kA surge current rating, it provides robust protection for key system components — including the solar charge controller, inverter, batteries, and sensitive electronics — helping prevent damage and system downtime.
Surge protectors are essential in any solar installation, especially in areas prone to thunderstorms or electrical fluctuations.
What It Does
A solar surge protector diverts excess voltage (surge energy) safely to ground when transient over‑voltages occur in the PV array or AC side of the system. Without it, sudden voltage spikes can:
- Damage inverters and controllers
- Reduce battery lifespan
- Burn out wiring or electronics
- Cause costly repairs or replacements
This 40 kA model is designed to handle large surge events, making it suitable for residential, commercial, or small off‑grid systems.
Key Features
⚡ 40 kA Surge Current Rating
Handles up to 40,000 amps of surge current, giving strong surge mitigation capability for solar systems. This rating reflects the device’s capacity to absorb and divert large transient energy.
🔌 Solar‑Specific Protection
Designed for photovoltaic systems — including:
- PV DC input side
- AC output side (if used with AC surge products)
- Charge controller terminals
These protect against overvoltage entering from the panels or grid.
🛡 Fast Response Time
Surge protectors react quickly (in nanoseconds) to voltage spikes, keeping sensitive equipment safe before damage occurs.
⚙ Compact, Easy to Install
Typically DIN‑rail mountable or terminal‑block ready for standard solar enclosures. Installation is straightforward when mounted close to the PV inverter or controller.
📌 LED / Indicator (Where Present)
Some models include visual status indicators (e.g., green vs red LED) to show if protection is still functional.
🌐 Universal Voltage Compatibility
Works with a range of voltages common in solar systems (e.g., 12 V, 24 V, 48 V, or higher DC/AC levels depending on variant).
Where to Install
✔ DC Side (Solar Panel Array) — Protects against surges travelling from the PV strings into the charge controller/inverter.
✔ AC Side (Output to Grid/Load) — (If designed for AC) Protects loads and inverter from grid transients.
✔ Near Charge Controller/Inverter — Best location to protect key electronics with minimal wiring length.
Proper grounding is critical for surge protectors to work effectively.
Why Surge Protection Matters
🌩️ Lightning & Storm Protection
Even indirect lightning strikes near solar panels can induce harmful voltage surges.
This device diverts that surge away from sensitive components.
⚡ Grid and Load Transients
Switching events on the grid or heavy load changes can cause transient spikes. Surge protection reduces risk of component failure.
💰 Cost Savings
Protecting your system prevents costly inverter or controller replacements and reduces downtime.
🔋 Increased System Reliability
By minimizing stress on electronics, surge protection contributes to longer service life for the entire solar setup.
Pros and Cons
| Pros (Advantages) | Cons (Disadvantages) |
|---|---|
| High 40 kA surge handling capacity | Only protects sideways; needs proper installation |
| Helps protect expensive solar electronics | Must be grounded correctly to be effective |
| Rapid response to voltage spikes | Provides limited protection without proper system bonding |
| Compact and easy to mount | Does not prevent all types of electrical faults |
| Works for DC and AC (if rated) | Need separate devices for full system protection |
| Improves system safety & uptime | Periodic checking may be required |
Installation Tips
🔧 Install close to controllers/inverters to catch surges early.
🌍 Ensure proper grounding using adequate gauge earth wires.
📌 Follow manufacturer wiring diagrams and polarity guidelines.
📆 Check indicator LEDs periodically to ensure the SPD is still functioning (if equipped).
⚠ Do not substitute surge protection for correct system design (grounding, bonding, fusing).
Common Uses
✔ Residential rooftop solar systems
✔ Off‑grid solar installations
✔ Solar battery storage systems
✔ Commercial PV arrays
✔ Solar water pumping systems
✔ Inverter & charge controller protection
