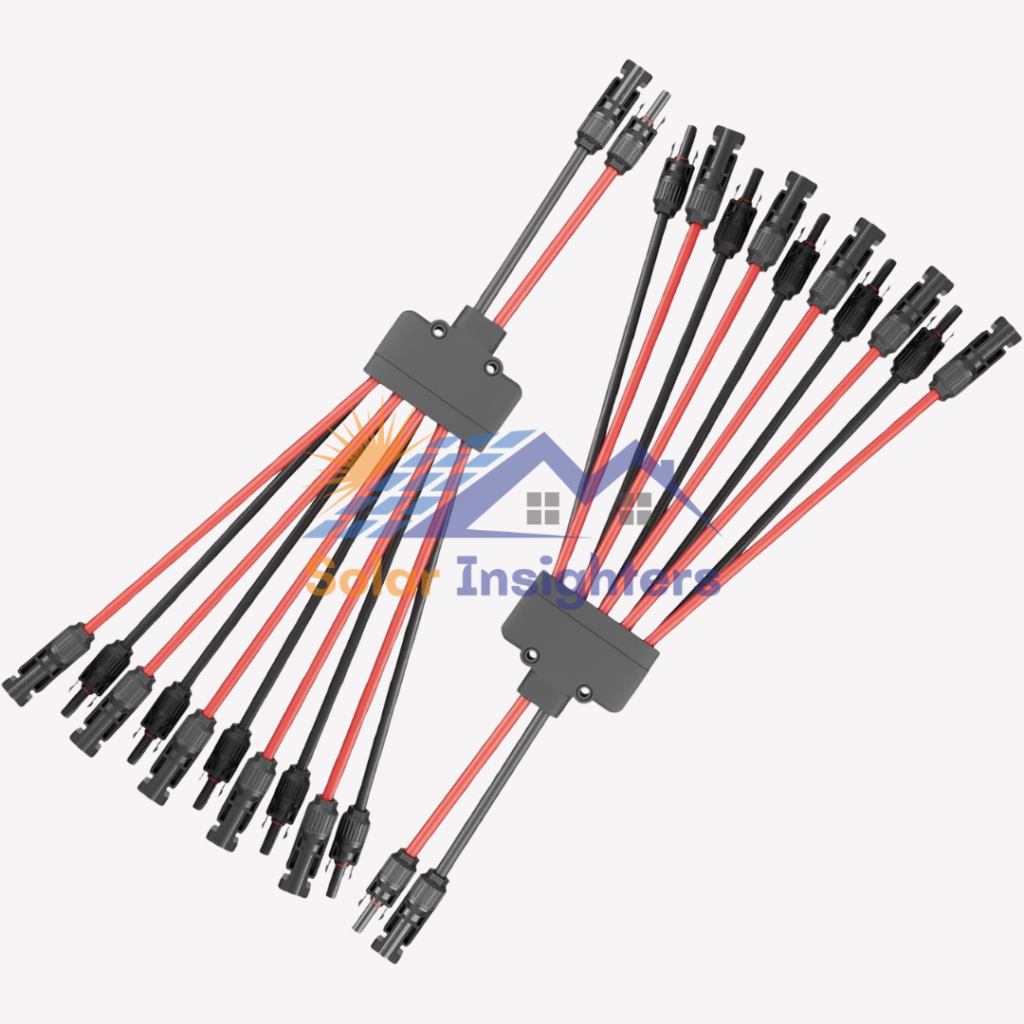

10 Solar Parallel Connector for 5 Solar Panels
- PARAMETER: 0.4M ; Rated Current: 30 A; Rated Voltage: 1000 VDC ;Waterproof Rating: IP67; Main line: 6mm² (10AWG); Branch lines: 4mm² (12AWG) ; works from -40℉ to 221℉
- SOLAR CONNECTORS: Includes 1 male to 5 female(M/FF) and 1 female to 5 male (F/MM) solar panel connectors, allowing 2-5 solar panels to be connected in parallel for higher output
About this item
10 Solar Parallel Connector for 5 Solar Panels
The 10 Solar Parallel Connector for 5 Solar Panels is a specialized accessory used to connect multiple solar panels in a parallel configuration. These connectors, often called MC4 Y-branch connectors, allow users to combine the output of up to five solar panels into a single connection.
This setup is commonly used in solar systems where users want to increase current (amps) while maintaining the same voltage, making it ideal for battery charging systems and off-grid solar setups.
How It Works
Parallel connectors combine multiple solar panel outputs into one line:
All positive wires are connected together
All negative wires are connected together
Voltage remains the same
Current (amps) increases
For example, connecting five 12V panels in parallel keeps the system at 12V but increases total current output.
Key Features
Multi-Panel Connection Support
Designed to connect up to 5 solar panels in parallel efficiently.
MC4 Compatibility
Works with standard MC4 connectors used in most solar systems.
High Current Capacity
Typically supports up to 30A–45A, depending on model quality.
Waterproof & Weatherproof (IP67/IP68)
Built for outdoor use, resistant to rain, dust, and harsh conditions.
Durable Build Quality
Made from high-quality insulation materials and copper contacts for reliable conductivity.
Plug-and-Play Installation
Easy to connect without complex wiring, saving time and effort.
Secure Locking Mechanism
Prevents accidental disconnection during operation.
Pros and Cons
| Pros (Advantages) | Cons (Disadvantages) |
|---|---|
| Allows multiple panels to connect in parallel | Requires proper current calculation |
| Increases total system current output | Not suitable for series connections |
| Easy MC4 plug-and-play design | May need additional cables |
| Waterproof and durable for outdoor use | Incorrect setup can reduce efficiency |
| Saves time in installation | Limited to compatible connectors |
| Ideal for expanding solar systems | Overloading risk if not properly rated |
Best Uses
The 10 Solar Parallel Connector Kit is ideal for:
Connecting multiple solar panels in parallel
RV and camper solar systems
Off-grid solar setups
Home solar battery charging systems
Portable solar panel setups
Important Tips for Use
Ensure all panels have the same voltage rating before connecting
Check the total current output to avoid overloading
Use proper fuse protection for safety
Make sure connectors are fully locked and waterproof
